SATELLITE OVERVIEW

ABS-4, an SS/L FS1300 satellite, is equipped with S-band and Ku-band coverage over the MENA region. It is a geostationary mobile multimedia satellite that provides direct broadcast of digital audio and video content to mobile users via two high-powered cross polarized Ku/S-band beams: West Beam and East Beam.

ABS-4 is also capable of distributing the digital data content to terrestrial repeater networks within the beam via two Ku/Ku-band beams.

KU/S BAND BEAMS

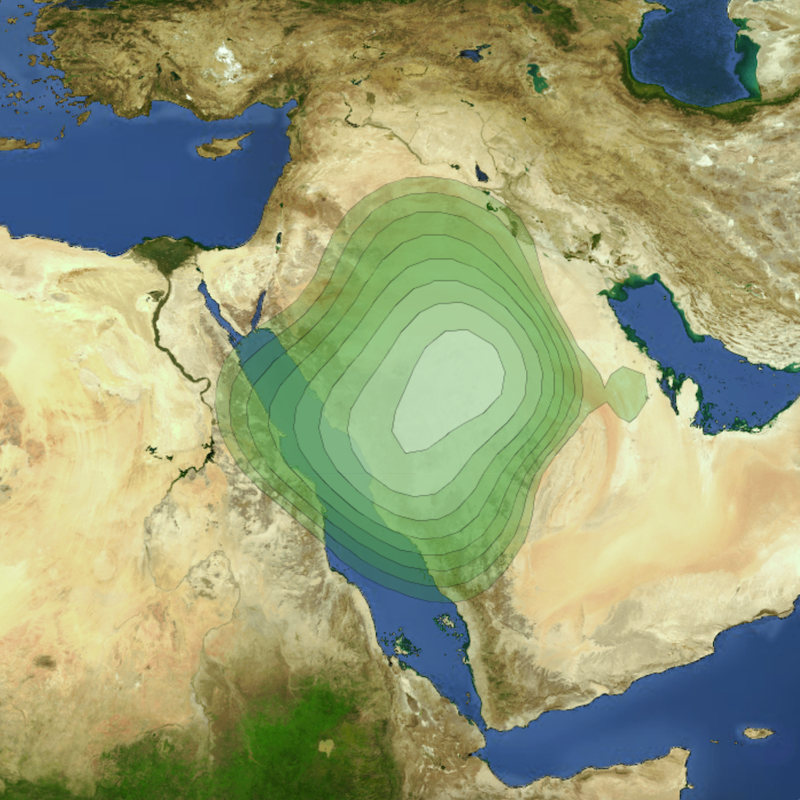

West Beam | 56-68dBW

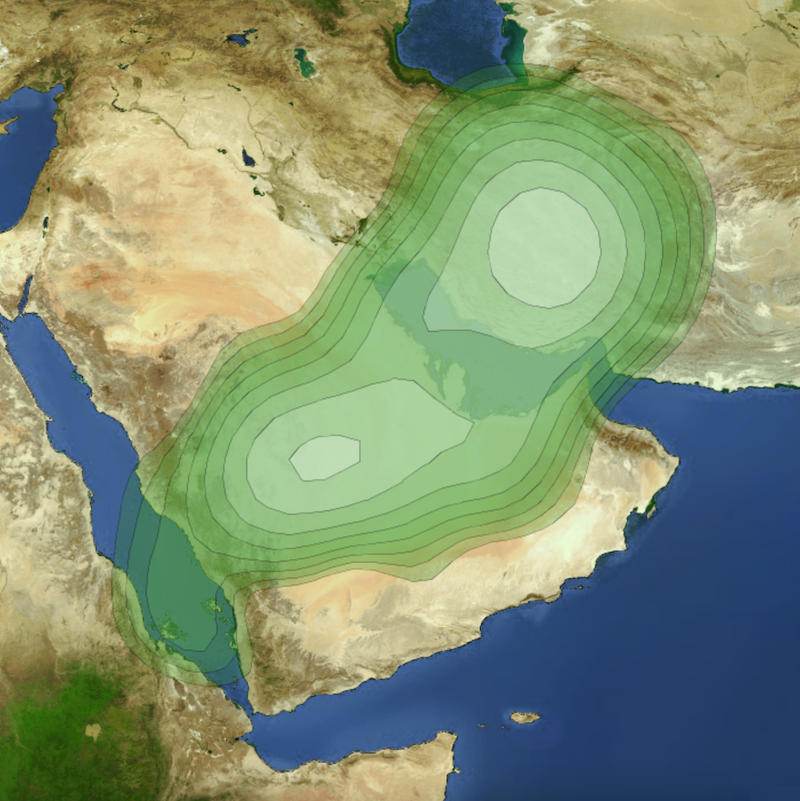

East Beam | 56-68dBW

KU/KU BAND BEAMS

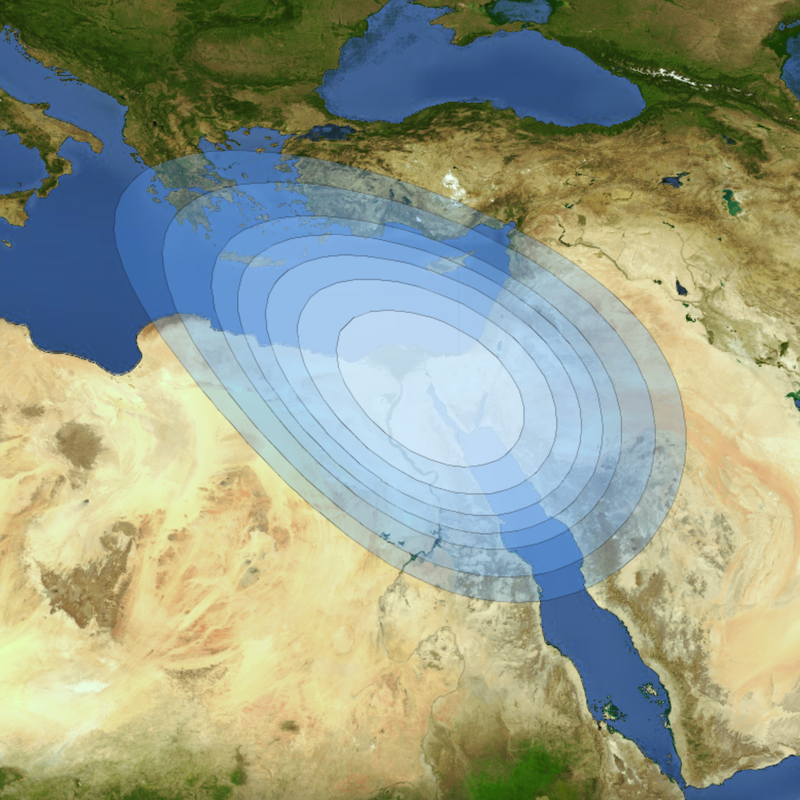

West Beam | 48-57dBW

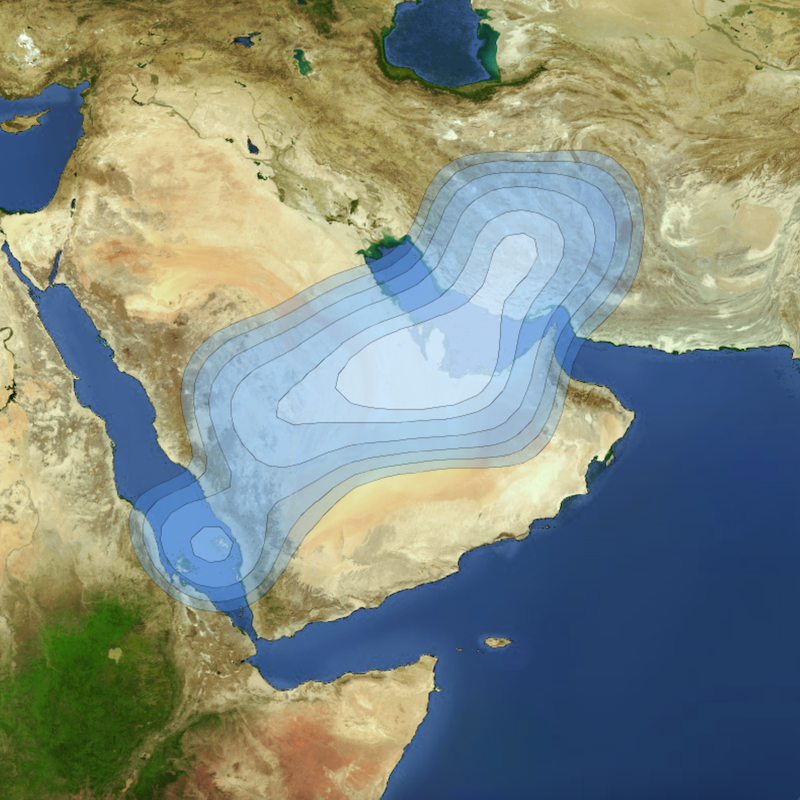

East Beam | 48-57dBW

PARAMETER KU/S-BAND KU/KU-BAND
Number of Transponders  2  2
Transponder Bandwidth (MHz) 25 25
Uplink / Downlink Frequencies (GHz) 13.858-13.883/2.630-2.655 13.824-13.849/12.214-12.239
Uplink / Downlink Signal Polarization Linear/Circular Linear/Linear
Cross-Polarization Separation (dB) 30 30
EIRP (Peak Value) (dBW) 68 (East Beam)
68 (West Beam)
57 (East Beam)
57 (West Beam)
TWTA Size (Watts) 135 (East Beam)
135 (West Beam)
150 (East Beam)
130 (West Beam)
TWTA Redundancy 24:16 (Power combined) (East Beam)
12:8 (Power combined) (West Beam)
2:1 (East Beam)
2:1 (West Beam)
Uplink SFD (dBW/m2) -105 to -85 (at 14.5 dB/K) (East Beam)
-105 to -85 (at 14.0 dB/K) (West Beam)
-105 to -85 (at 14.5 dB/K) (East Beam)
-105 to -85 (at 14.0 dB/K) (West Beam)
G/T (Peak Value) (dB/K) 14.5 (East Beam)
14 (West Beam)
14.5 (East Beam)
14 (West Beam)
